Description
xTool SafetyPro™ AP2 - Replacement Filters
Keep your AP2 performing like new. Choose the exact filter you need to maintain clean, safe air in your DTF and apparel-printing workspace.

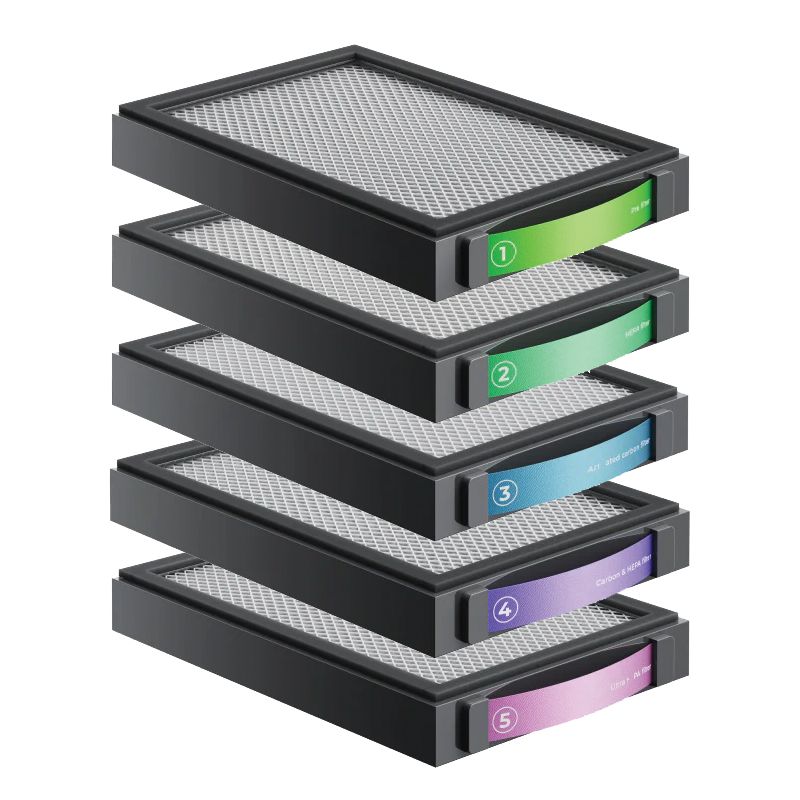

Available Filter Types
- Pre-Filter - Captures larger dust and fibers to protect downstream filters and extend their lifespan.
- Medium-Efficiency Filter - Traps fine particulate (PM) before HEPA stage for steadier airflow and longer service life.
- Activated Carbon Layer - Adsorbs odors and VOCs generated during curing/powdering and heat processing.
- Ultra-Dense Carbon Mesh - High-surface-area carbon matrix for stubborn fumes/odors.
- High-Efficiency (HEPA) Filter - Final particulate capture for clean, breathable exhaust air.
Select and purchase filters individually as needed. AP2 features a multi-stage path; replacing the right stage at the right time reduces cost and downtime.
Why Replace Regularly
- Performance: Clogged filters reduce suction and can lead to odor or smoke leakage.
- Longevity: Upstream stages (pre/medium) protect HEPA and carbon media from premature loading.
- Air Quality: Fresh carbon layers maintain odor/VOC adsorption efficiency for indoor compliance.
Typical service lifespans vary by use; individual AP2 filters commonly span roughly 100-600 hours of operation. Monitor airflow/odor and replace as needed.
Installation (Quick Steps)
- Power off AP2 and disconnect the power cable.
- Open the magnetic filter door and note the filter order.
- Remove the spent filter; vacuum any loose dust in the chamber.
- Unwrap the new filter and install with the airflow arrow in the correct direction.
- Close the door, reconnect power, and run the unit on high for 1-2 minutes to seat the media.
Clean/empty the cyclone pre-stage regularly to extend filter life. Always follow the official user guide for safety and detailed steps.
Compatibility
These filters are designed specifically for the xTool SafetyPro™ AP2 air purifier. (AP2 Max uses a different filter set.)
Specifications
Item #: XT-AP2-FILT-PRE (Pre-Filter)
XT-AP2-FILT-MED (Medium Efficiency)
XT-AP2-FILT-CARB (Activated Carbon)
XT-AP2-FILT-UDC (Ultra Dense Carbon Mesh)
XT-AP2-FILT-HEPA (High Efficiency)
