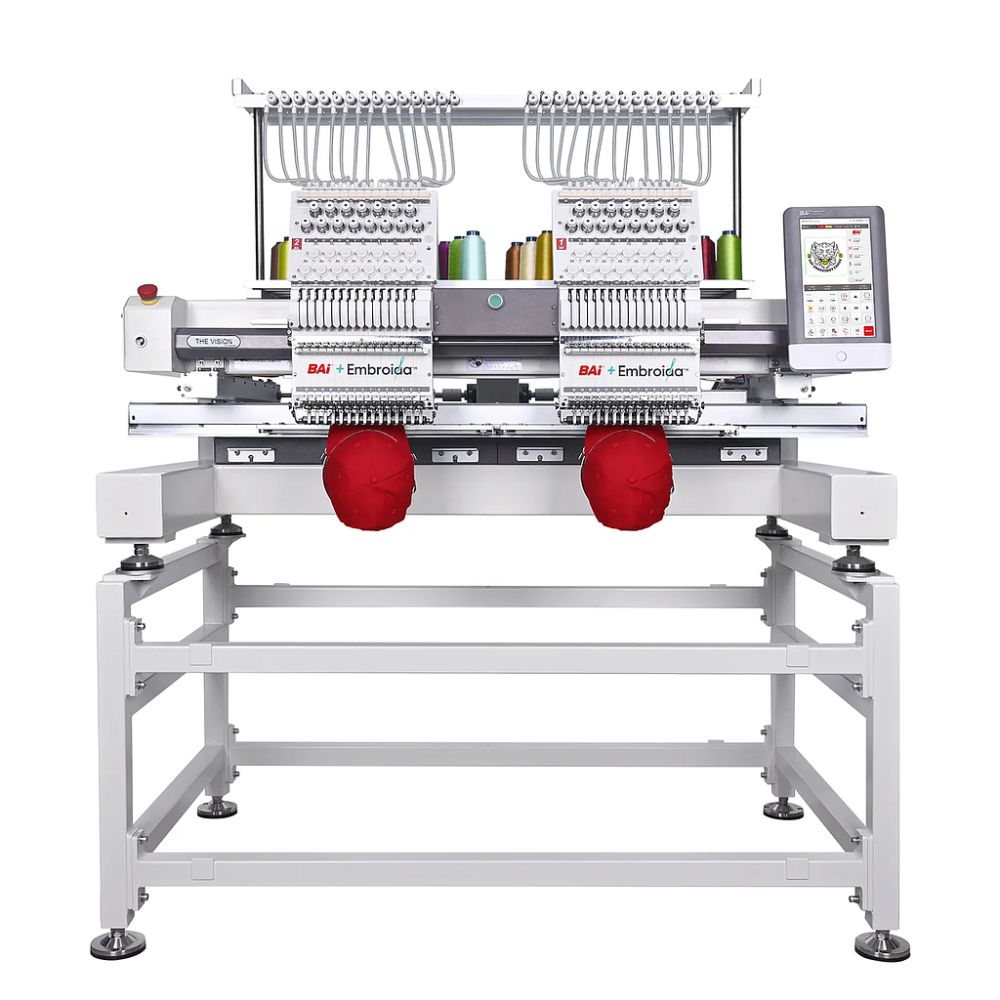

Embroida DUO™ - Dual-Head 15-Needle Industrial Embroidery Machine

Double the Heads. Double the Output. Embroida™ - Industrial Embroidery, Simplified.

Embroida DUO™ is a dual-head embroidery platform for shops that are ready for serious production. Built on BAI's two-head VISION chassis and configured by DTGPRO, it lets you run two garments at once, mirror designs, or double your throughput on repeat jobs - all with the same 15-needle, large-field capability as Embroida PRO™.

Why Embroida DUO™

• Two industrial heads: 2 x 15-needle heads on a shared industrial frame for maximum output.
• Large field per head: approx. 500 x 400 mm (19.7" x 15.7") on each head for jacket backs, hoodies, bags and more.
• High-speed production: up to 1200 spm flat embroidery, engineered for stable stitching at speed.
• 3D hat specialist: optimized penetration and motion curve tuning for structured caps and 3D puff embroidery with recommended speeds up to around 950 spm.
• Industrial frame & welding: flat body, welded structure and reinforced rails for stability across both heads.
• Matched assembly: critical elements like rails, motor mounts and needle height are aligned so both heads track consistently.
• Institch i5 controller: manages both heads with pattern batching, curve correction and workflow tools.
• USB & Wi-Fi connectivity: import jobs, manage patterns and leverage network tools for multi-machine environments.
• DTGPRO ecosystem support: integrates into your shop alongside DTF, DTG and other DTGPRO systems.

Ideal Applications

• Contract embroidery and fulfillment centers
• High-volume cap and 3D hat production
• Bulk jacket, hoodie and uniform runs
• Shops running parallel jobs or mirrored designs
• Production environments that need redundancy and capacity

Technical Specifications - Embroida DUO™

• Heads: 2
• Needles per Head: 15
• Max Embroidery Speed (flat): Up to 1200 spm
• Recommended 3D Hat Speed: Up to approximately 950 spm
• Embroidery Area (per head): Approx. 500 x 400 mm (19.7" x 15.7")
• Control System: Institch i5 computerized control
• Connectivity: USB and Wi-Fi
• Machine Size: Approx. 150 x 87 x 167 cm (59.1" x 34.2" x 65.7")
• Machine Weight: Approx. 338 kg (745 lb)
• Shipping Package: Wooden case, approx. 167 x 113 x 88 cm; around 430 kg (948 lb) gross weight
• Power: AC 110-230 V, 50/60 Hz

What's Included with Embroida DUO™

Embroida DUO™ ships with a dual-head accessory kit geared toward production (contents may vary by region and configuration):

• Cap station plus dual cap drivers
• Multiple cap frames for both heads
• Sets of round hoops (approx. 3.5", 4.7", 5.9", 7.9") for each head
• Medium and large hoops, including jacket-back sizes
• Industrial stand with supporting feet and handrails
• Starter needles and multiple boxes of pre-wound bobbins
• Tool kit and basic maintenance accessories
• Onboarding resources and documentation
• FREE TRAINING & Technical Support
